Specification Sheet
-
Luminaire Type :
Ground light
-
Model Code :
- LLG-7134LUW
- 2700K
- LLG-7134YUW
- 3000K
Technical Data

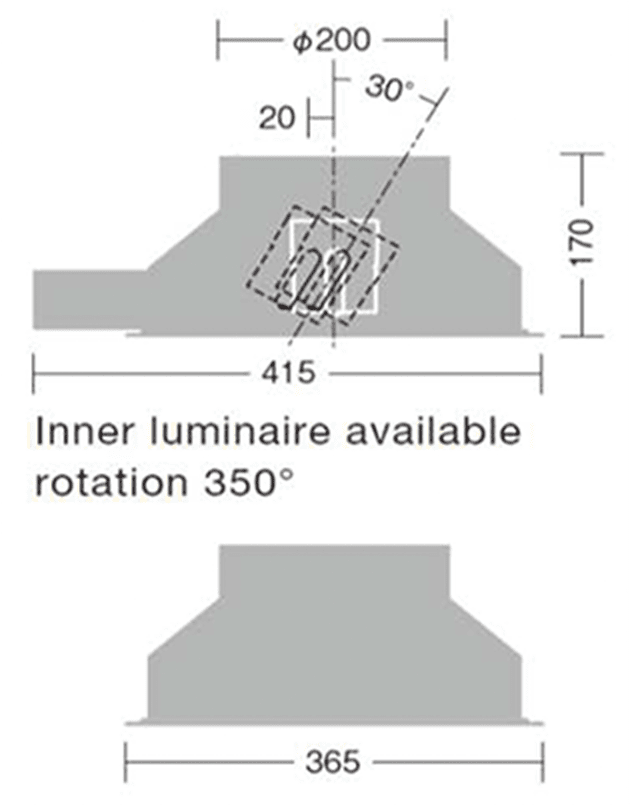

| Dimension | W.365/L.415/H.170mm |
|---|---|
| Weight | 7.0 Kg |
| Light source | LED |
| Wattage | 14.5W |
| Lumen, Color temp. | 1060Lm(2700K/3000K) |

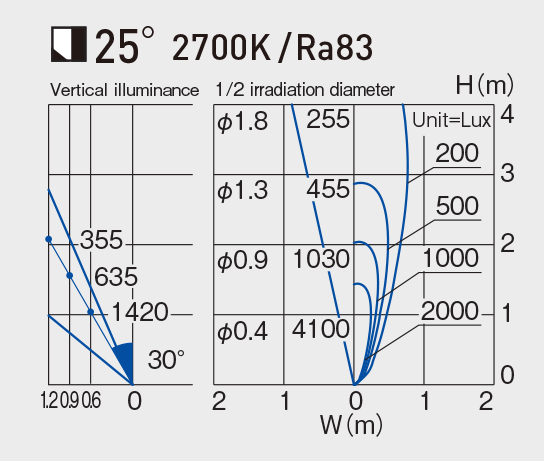

| Beam angle | 25° |
| CRI | 83 |
| Protection Class(IP) | IP67 |
Component & Information
Stainless steel housing, marine-grade black color painting
Aluminum reflector cone, chemical polishing
Stainless steel trim, hairline finish, Tempered glass cover, clear
Aluminum die-casting inner luminaire, with optical control lens
- *Internal LED driver for 100~242V, Non-dimmable
- *Two optional accessories can be used together.
- *Non-slip processing of glass is available by custom order.
- *Do not use in places to load such as vehicles.
- *Do construction work on drainage treatment.

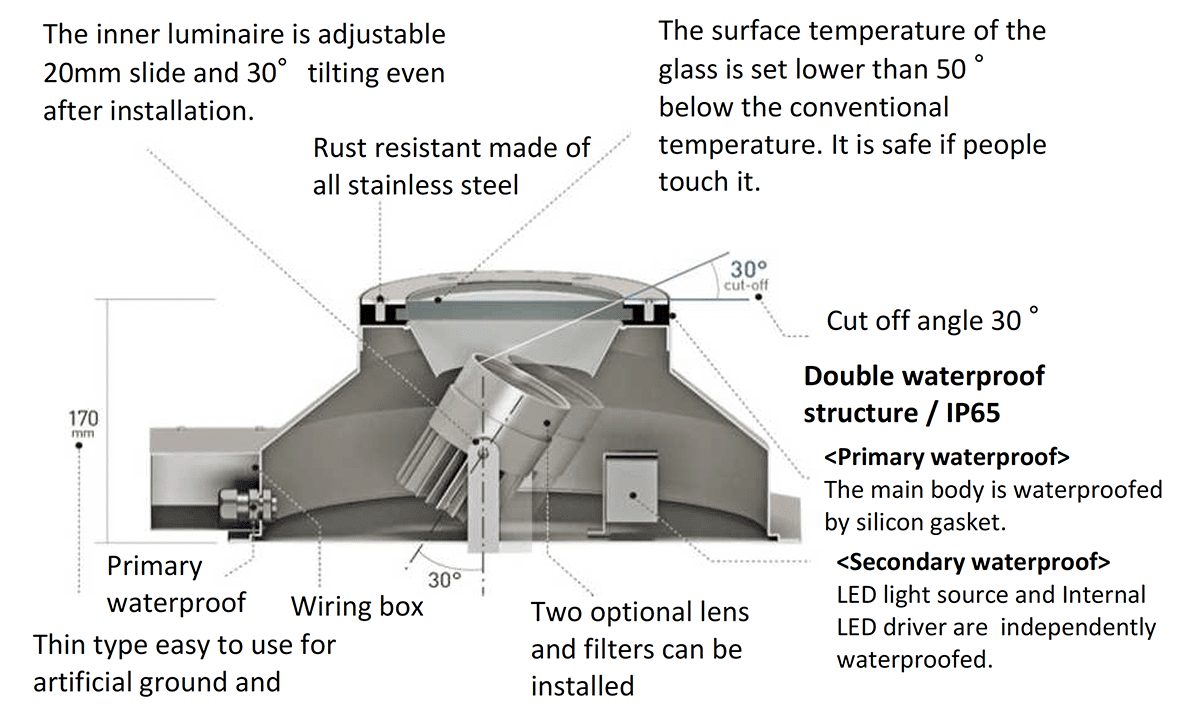

Feature
Accessories
-
Wide diffusion lens
LZA-92558
-
Spread lens
LZA-90435
-
Coldtone filter
LZA-90439
-
Honeycomb louver
LZA-92954
-
Flood lens
LZA-90635
-
Warmtone filter
LZA-90437
-
Light shield plate
LLA-7135U
