Specification Sheet
-
Luminaire Type :
Downlight
-
Model Code :
- LLD-7083AUB
- 3500K
- LLD-7083LUB
- 2700K
- LLD-7083YUB
- 3000K
Technical Data

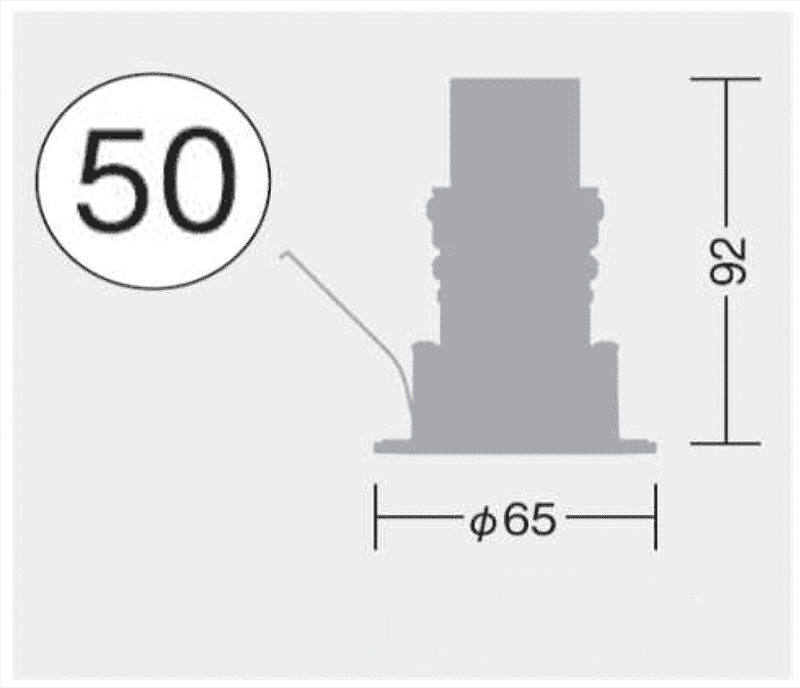

| Dimension | D.65/H.92mm |
|---|---|
| Weight | 0.5 Kg |
| Light source | LED |
| Wattage | 11.4W |
| Lumen, Color temp. | 475Lm(3500K)/455Lm(2700K)/465Lm(3000K) |

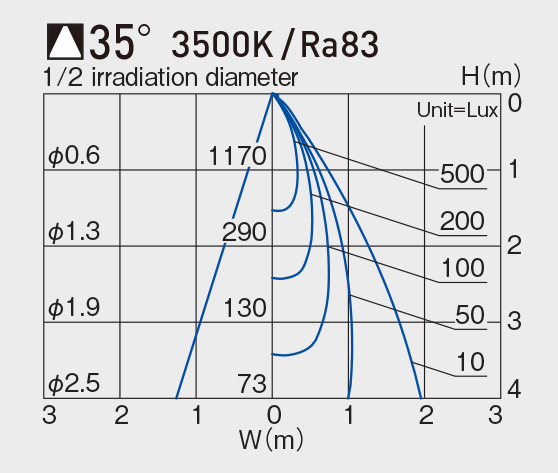

| Beam angle | 35° |
| CRI | 83 |
| Protection Class(IP) | IP44 |
Component & Information
Aluminum die-casting trim, marine-grade painting with stainless color
Aluminum die-casting heatsink, Stainless steel fixture
Plastic cone chrome plating, Aluminum mirror reflector
Tempered glass cover, clear
- *Glare cut-off angle: 35°
- *Ceiling cut-out hole: Dia.50mm
- *Optional accessories are not available.
- *Available ceiling board: t5~25mm
- *Remote LED driver is required.

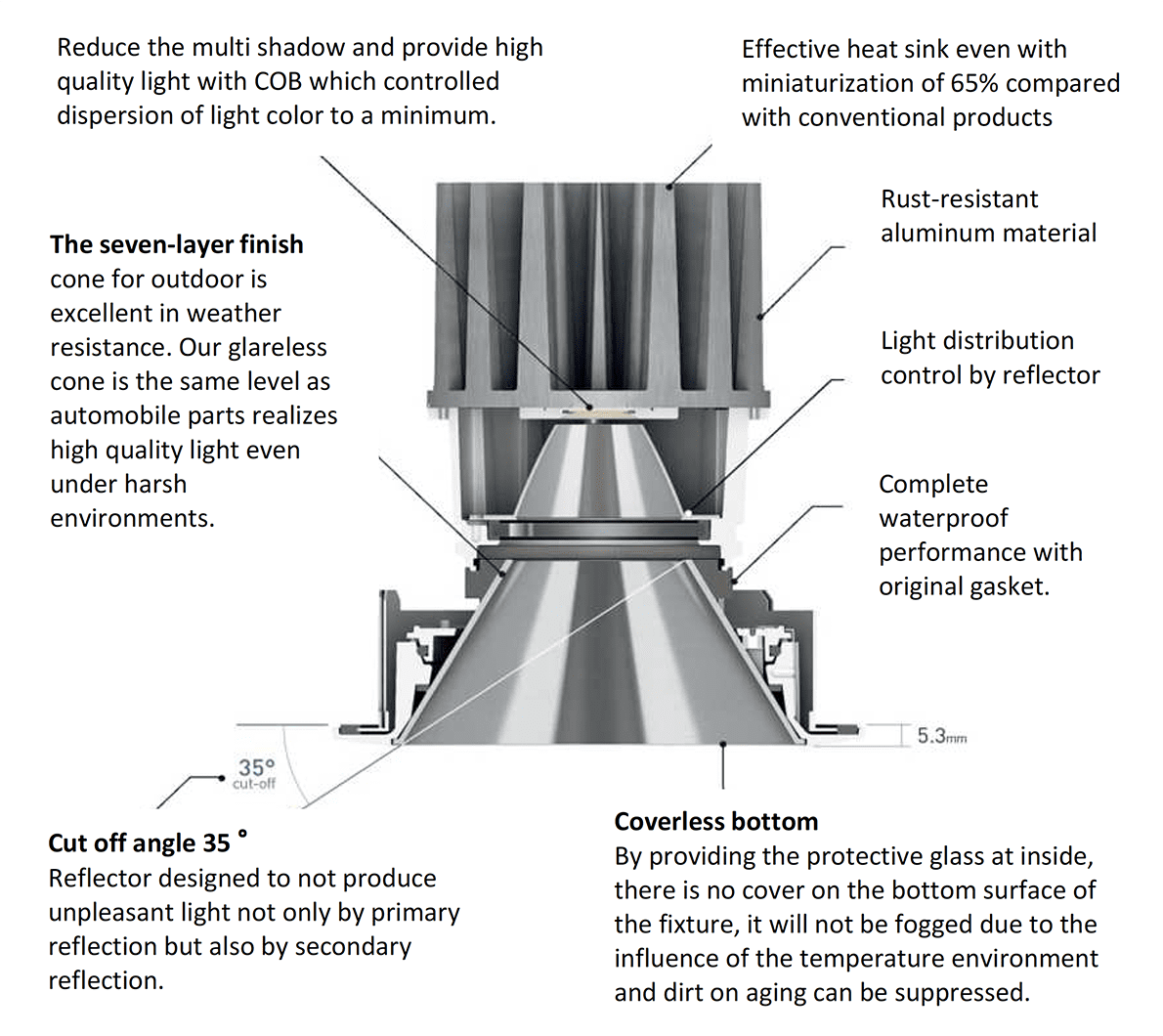

Feature
