Specification Sheet

Luminaire Type :

Adjustable Downlight
Model Code :

LLD-7061AUM

3500K

LLD-7061LUM

2700K

LLD-7061YUM

3000K

Technical Data

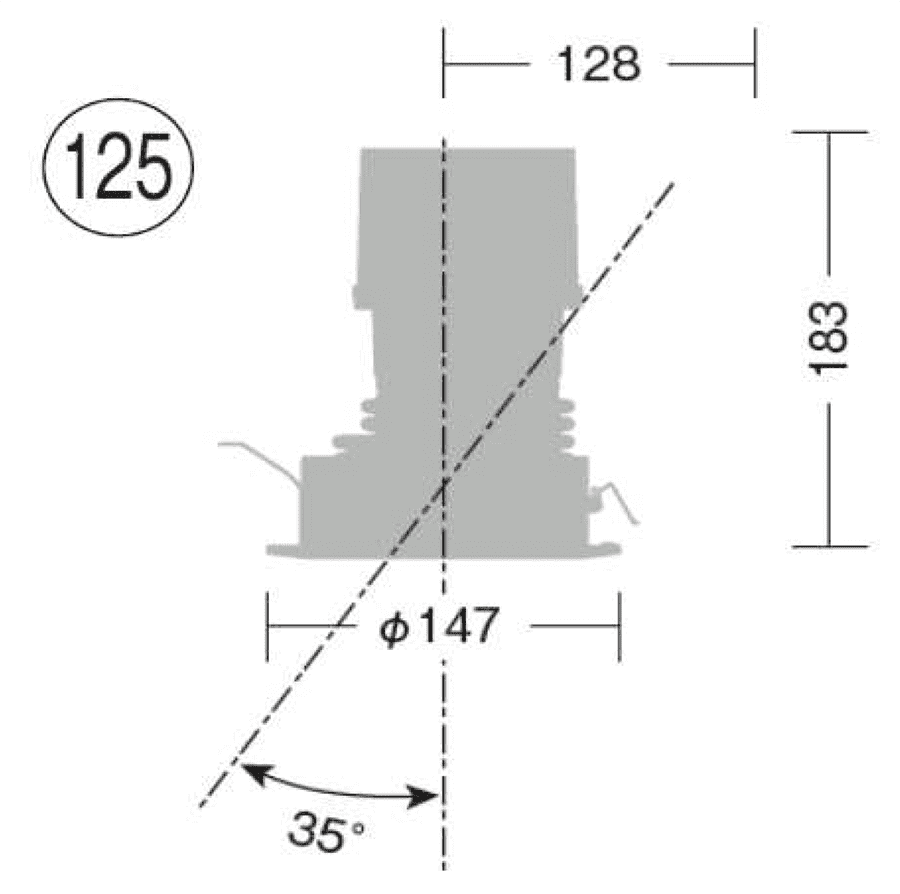

Dimension	D.147/H.183mm
Weight	1.4 Kg
Light source	LED
Wattage	39W
Lumen, Color temp.	2160Lm(3500K)/2030Lm(2700K)/2100Lm(3000K)

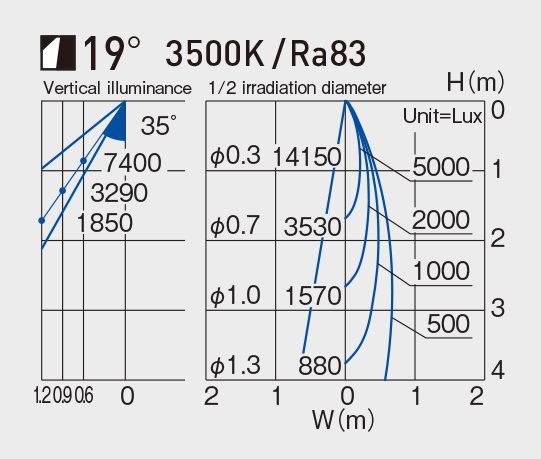

Beam angle	19°
CRI	83
Protection Class(IP)	IP44

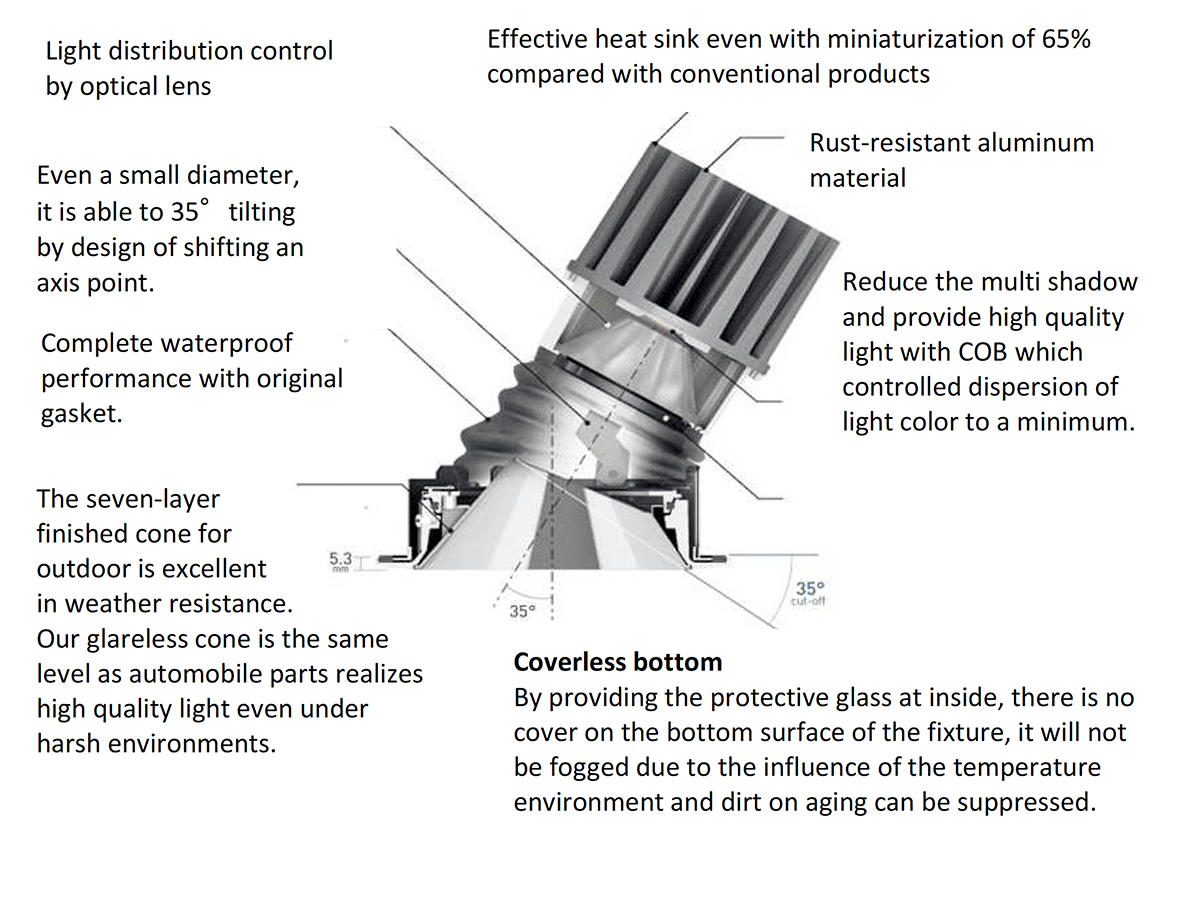

Component & Information

Aluminum die-casting trim, marine-grade painting with stainless color
Aluminum die-casting heatsink, Stainless steel fixture
Silicon accordion black gasket, Plastic cone chrome plating
Optical control lens, Tempered glass cover, clear

*Glare cut-off angle: 35°
*Ceiling cut-out hole: Dia.125mm
*Available ceiling board: t5~25mm
*Remote LED driver is required.
