Specification Sheet

Return to search results list

  • Luminaire Type :

    Spot light (Recessed box mounting / Flangeless type)

  • Model Code :

    LLS-7099LUM
    2700K
    LLS-7099YUM
    3000K

Technical Data

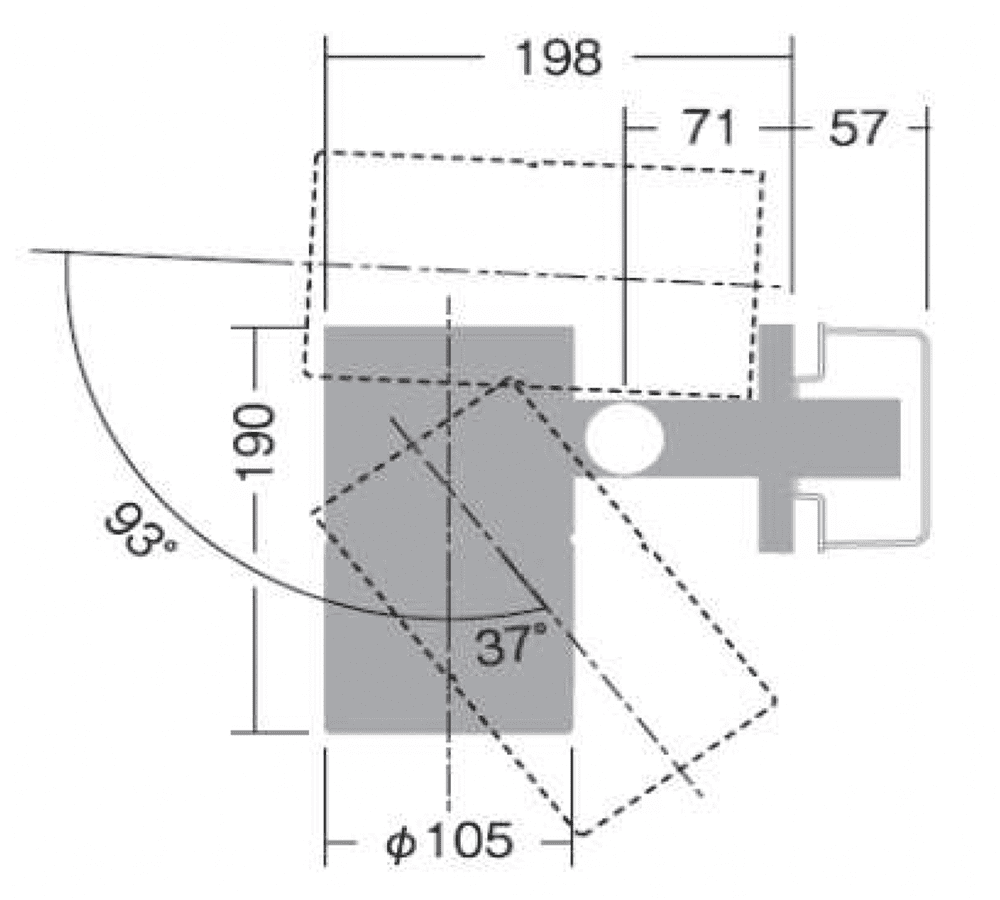

Dimension D.105/L.190/H.198mm
Weight 3.0 Kg
Light source LED
Wattage 26W

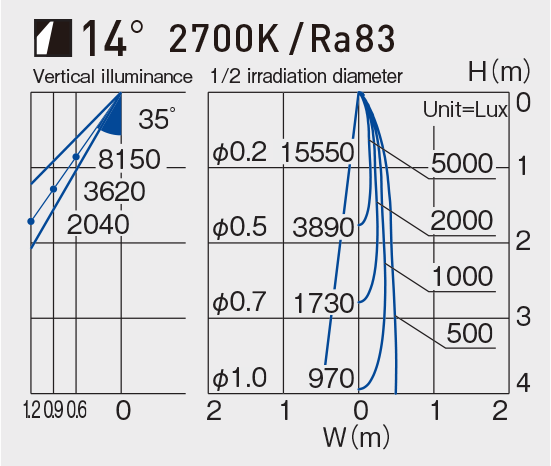

Lumen, Color temp. 1410Lm(2700K)/1460Lm(3000K)
Beam angle 14°
CRI 83
Protection Class(IP) IP65

Component & Information

Aluminum die-casting, marine-grade painting with stainless color
Tempered glass cover, clear
Optical control lens

  • *Internal LED driver for 100~242V, Non-dimmable
  • *Two optional accessories can be used together.
  • *Require recessed mounting box.

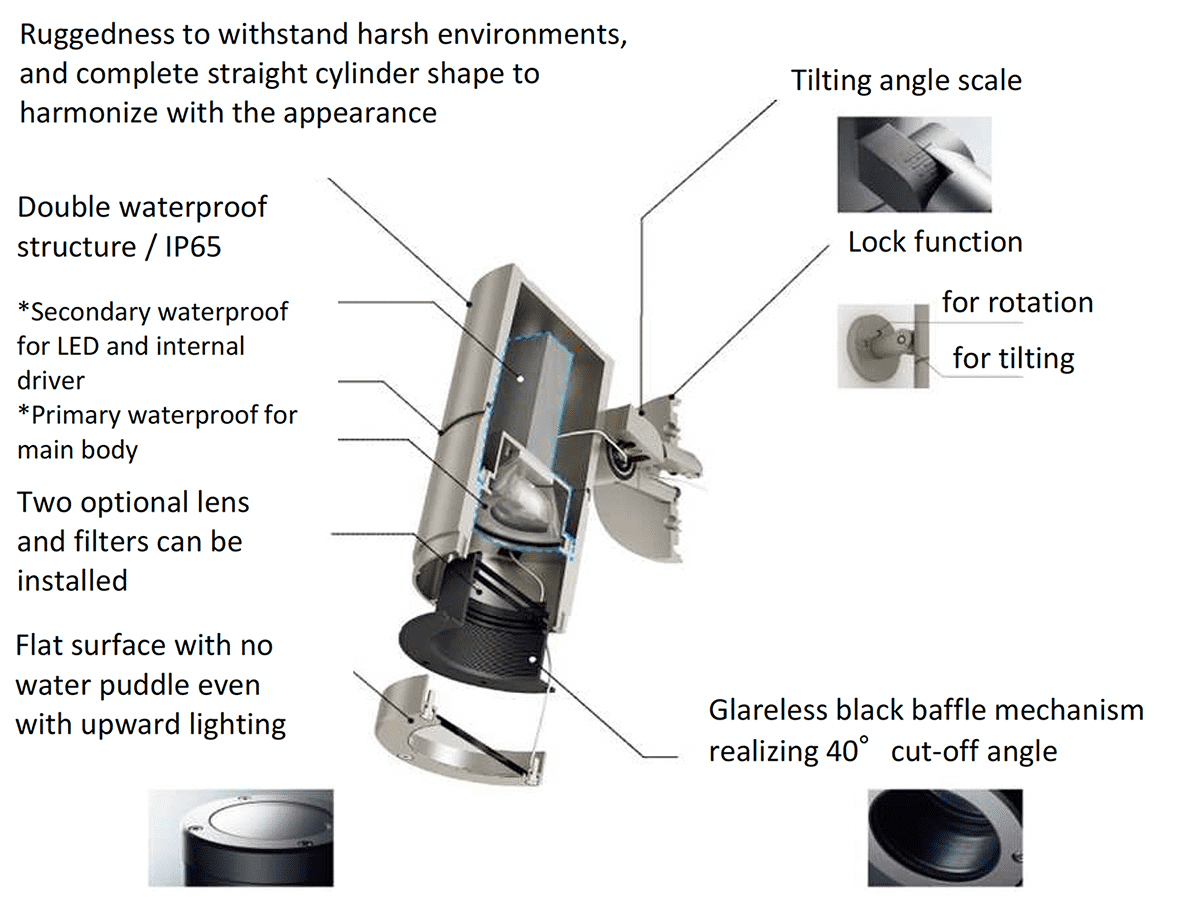

Feature

Download

Accessories

  • Wide diffusion lens

    LZA-92558

  • Spread lens

    LZA-90435

  • Coldtone filter

    LZA-90439

  • Honeycomb louver

    LZA-92954

  • Flood lens

    LZA-90635

  • Warmtone filter

    LZA-90437

  • Hood

    LLA-7119U
