Specification Sheet

Return to search results list

  • Luminaire Type :

    Spot light (Recessed box mounting / Flangeless type)

  • Model Code :

    LLS-7001LUME
    2700K
    LLS-7001YUME
    3000K

Technical Data

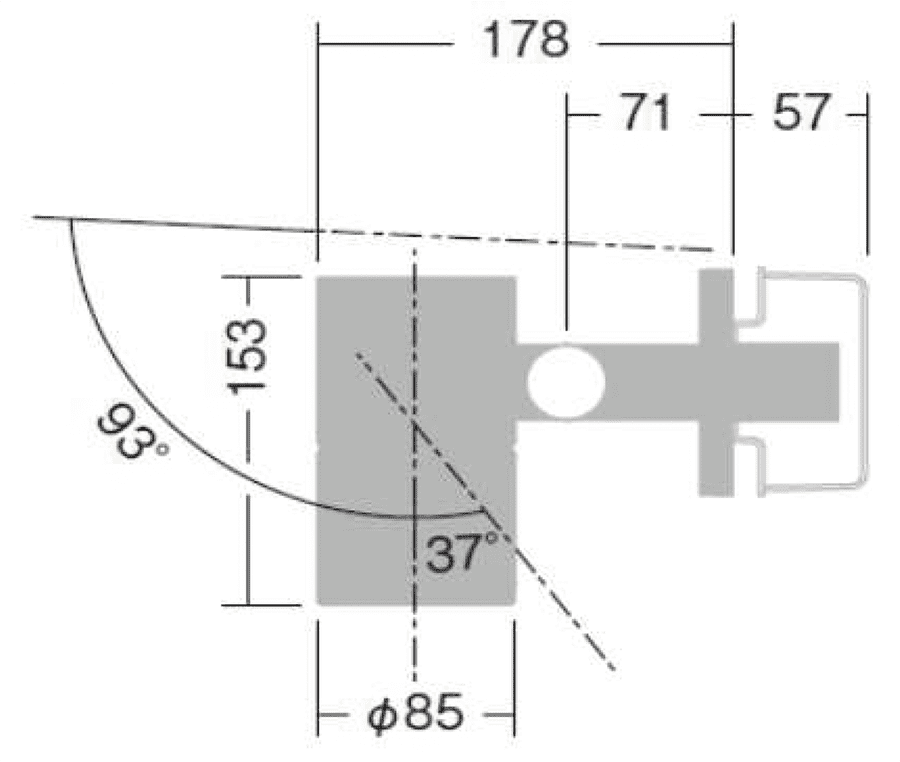

Dimension D.85/L.153/H.178mm
Weight 1.9 Kg
Light source LED
Wattage 6.1W
Lumen, Color temp. 285Lm(2700K)/300Lm(3000K)
Beam angle 13°
CRI 83
Protection Class(IP) IP65

Component & Information

Aluminum die-casting, marine-grade painting with stainless color
Tempered glass cover, clear
Optical control lens

  • *Internal LED driver for 100~242V, Non-dimmable
  • *Two optional accessories can be used together.
  • *Require recessed mounting box.

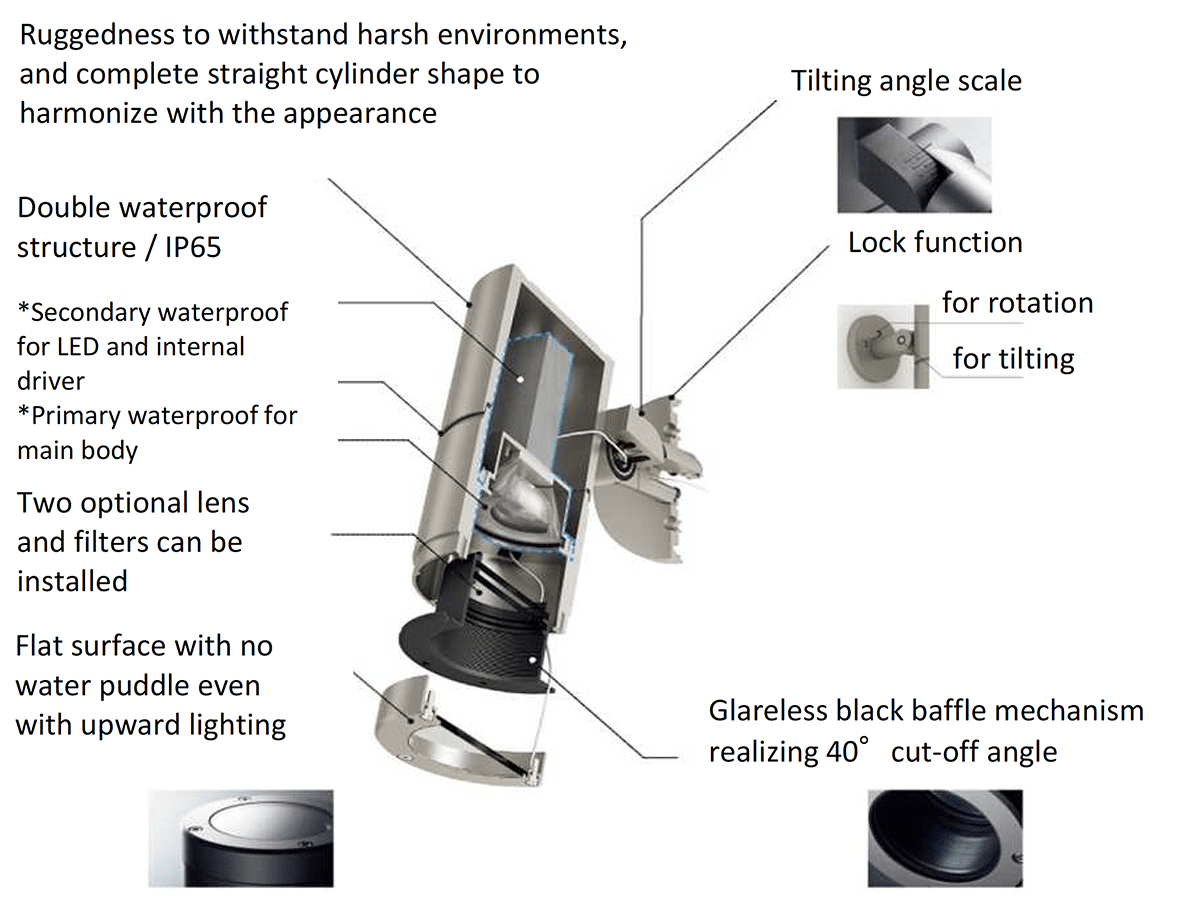

Feature

Download

Accessories

  • Wide diffusion lens

    LZA-92557

  • Spread lens

    LZA-90571

  • Coldtone filter

    LZA-90574

  • Honeycomb louver

    LZA-92953

  • Flood lens

    LZA-90572

  • Warmtone filter

    LZA-90573

  • Hood

    LLA-7118U
