Specification Sheet
-
Luminaire Type :
Bollard light
-
Model Code :
- LLP-7151LU
- LLA-7009U
- Recessed pole H300
- LLA-7010U
- Recessed pole H500
- LLA-7011U
- Recessed pole H800
- LLA-7013U
- Base plate pole H300
- LLA-7014U
- Base plate pole H500
- LLA-7015U
- Base plate pole H800
- LLA-7016UE
- Spike pole H300
Technical Data
| Dimension | D.90/H.184mm |
|---|---|
| Weight | 0.6 Kg |
| Light source | LED |
| Wattage | 8W |
| Lumen, Color temp. | 215Lm(2700K) |
| CRI | 83 |
| Protection Class(IP) | IP65 |
Component & Information
Aluminum die-casting luminaire body, Aluminum extrusion tube pole
marine-grade painting with stainless color
Clear solid acrylic cylinder, hollow inner frosted
- *Internal LED driver for 100~242V, Non-dimmable

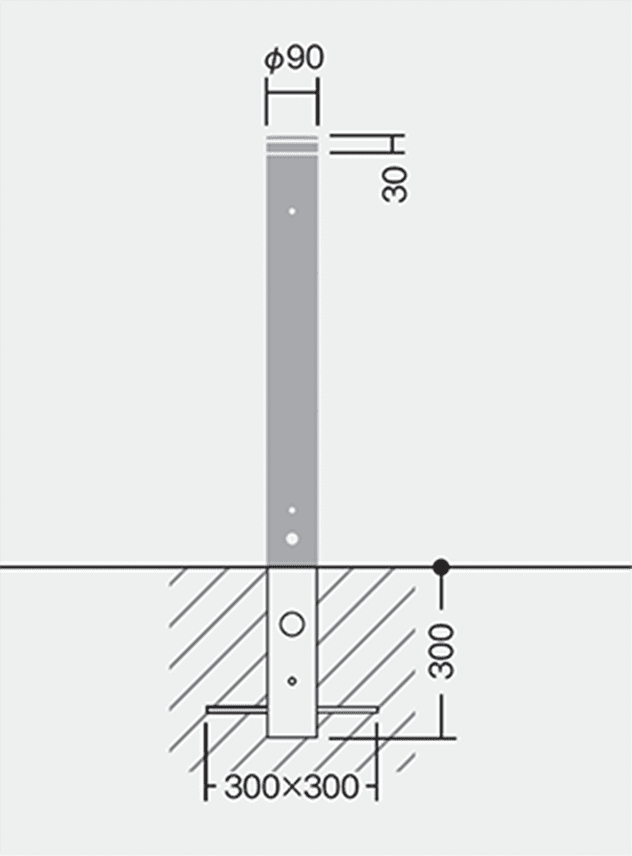

- *Ground recessed mounting pole.

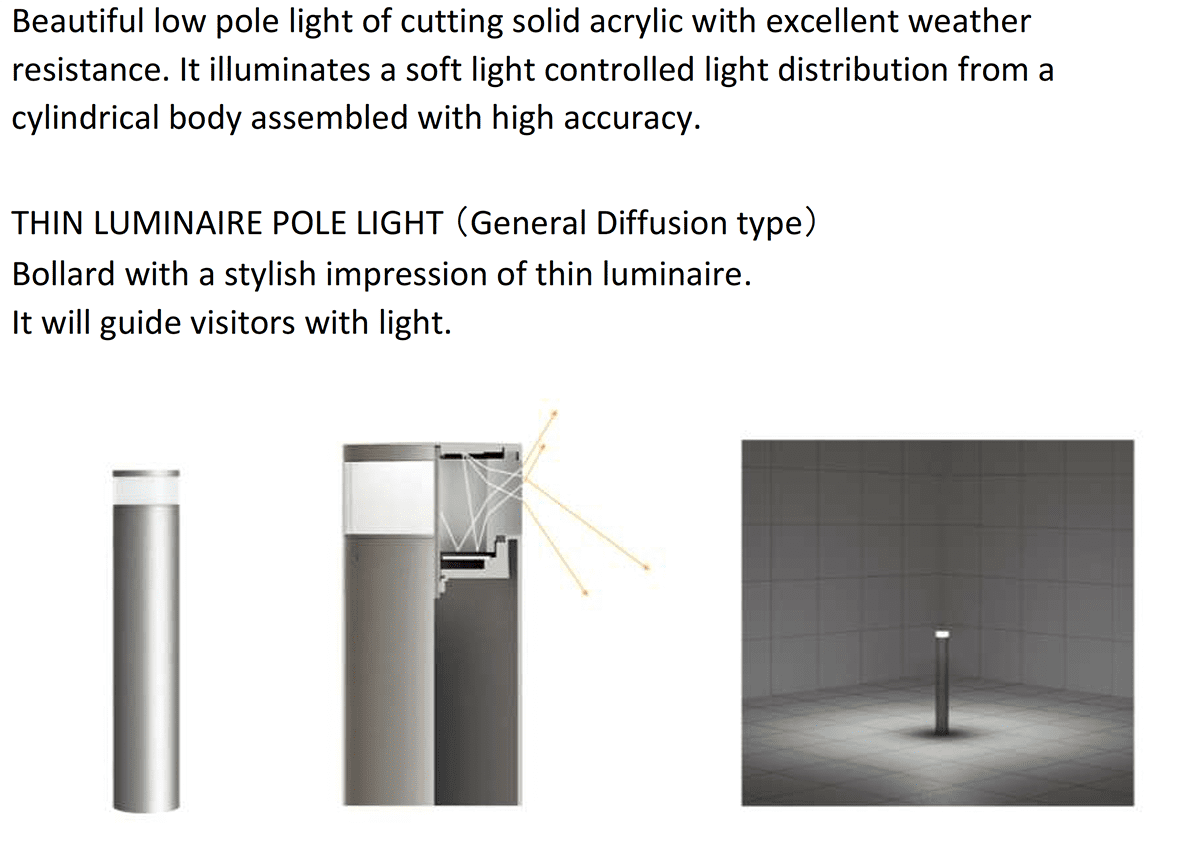

Feature
