Specification Sheet
-
Luminaire Type :
Bollard light
-
Model Code :
- LLP-7028LUE
- LLA-7033U
- Recessed mounting base
- LLA-7034U
- Plate mounting base
Technical Data

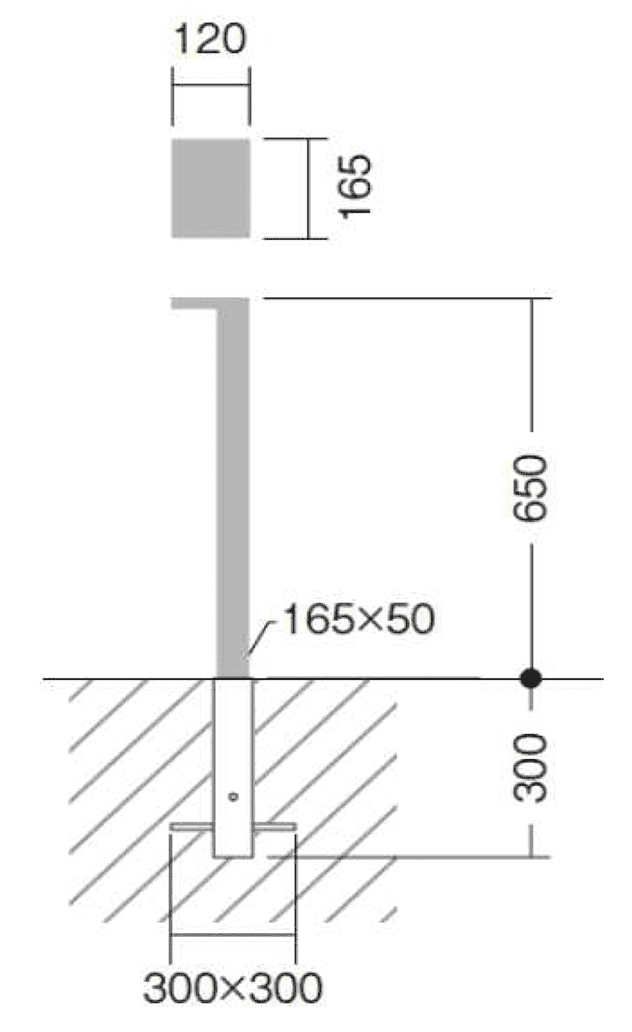

| Dimension | W.165/D.120/H.650mm |
|---|---|
| Weight | 5.3 Kg |
| Light source | LED |
| Wattage | 9W |
| Lumen, Color temp. | 300Lm(2700K) |
| CRI | 83 |
| Protection Class(IP) | IP65 |
Component & Information
Aluminum die-casting luminaire body, Aluminum extrusion pole
marine-grade painting with stainless color

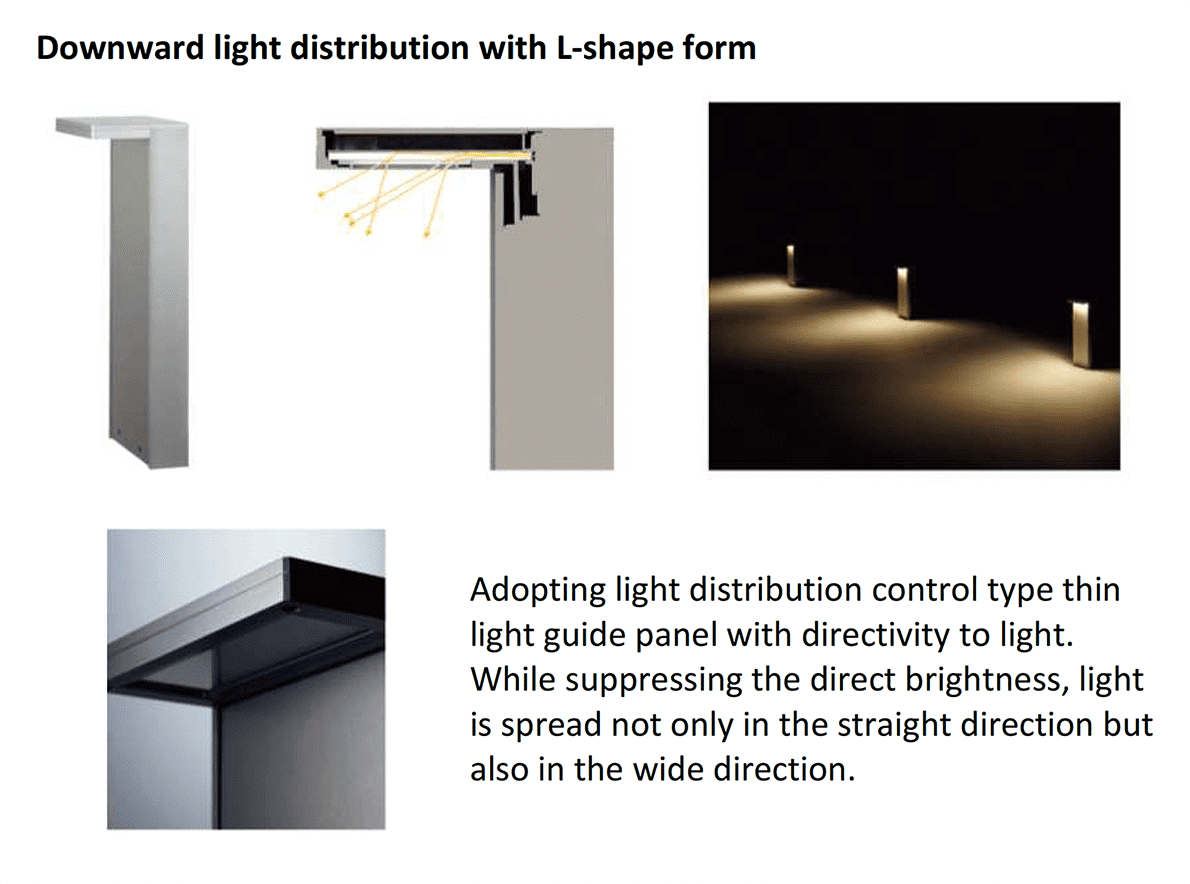

Acrylic light guide panel
Stainless steel mounting base, black painting
- *Internal LED driver for 100～242V, Non-dimmable
- *Ground recessed mounting
Feature
