Specification Sheet
-
Luminaire Type :
Bollard light
-
Model Code :
- LLP-7021LUE
- LLA-7022U
- Recessed pole H600
- LLA-7023U
- Recessed pole H900
- LLA-7024U
- Base plate pole H600
- LLA-7025U
- Base plate pole H900
- LLA-7026UE
- Spike pole H400
Technical Data
| Dimension | D.90/H.261mm |
|---|---|
| Weight | 1.5 Kg |
| Light source | LED |
| Wattage | 8W |
| Lumen, Color temp. | 465Lm(2700K) |
| CRI | 83 |
| Protection Class(IP) | IP65 |
Component & Information
Aluminum die-casting luminaire body, Aluminum extrusion pole
marine-grade painting with stainless color
Milky-white cubic glass inner frosted, sharp edge finish
Polycarbonate dome design diffuser for LED module
- *Internal LED driver for 100~242V, Non-dimmable

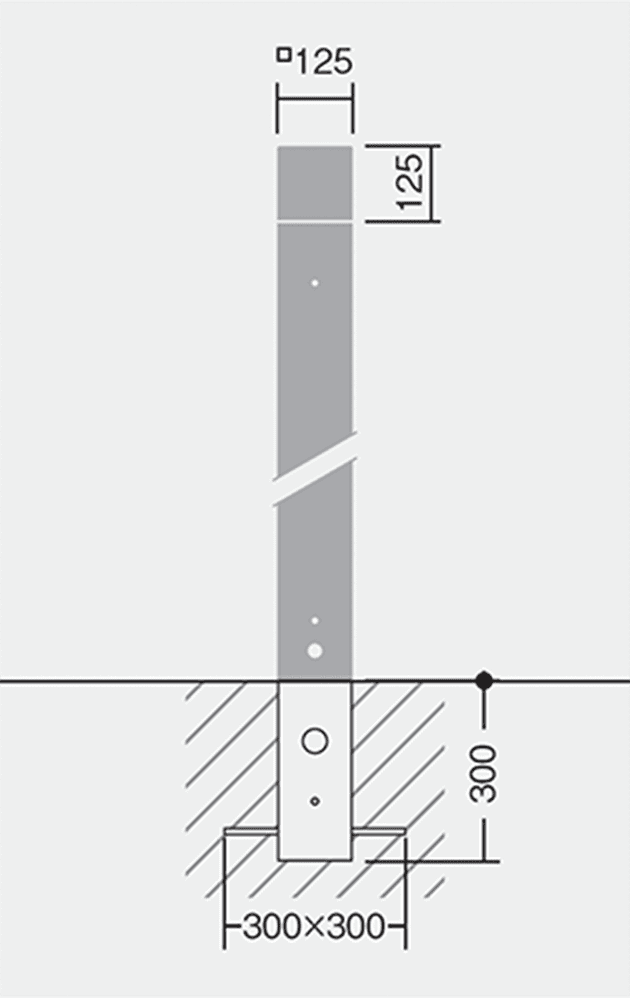

- *Ground recessed mounting pole.

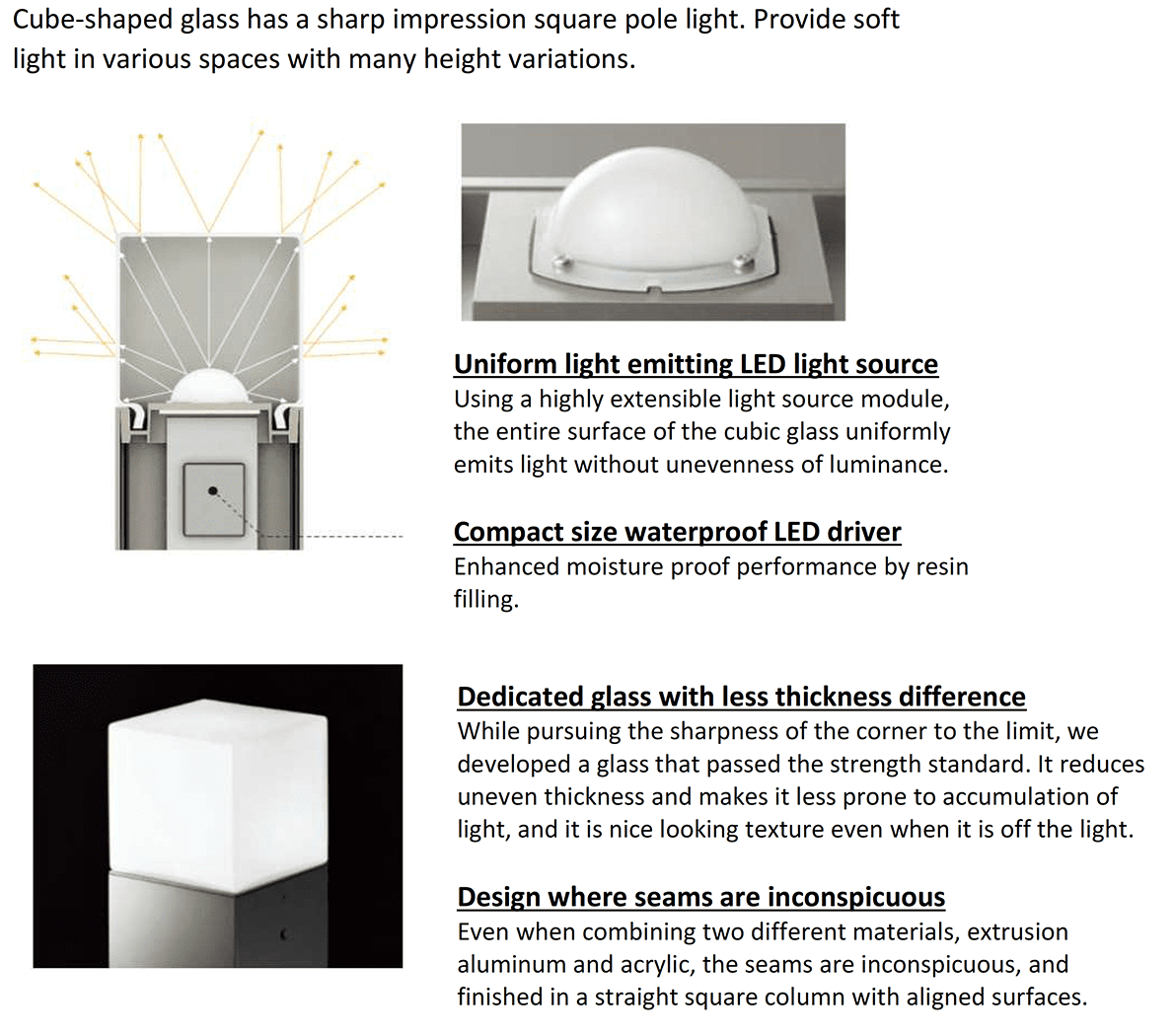

Feature
