Specification Sheet

Luminaire Type :

Adjustable Downlight
Model Code :

LLD-7088AUB

3500K

LLD-7088LUB

2700K

LLD-7088YUB

3000K

Technical Data

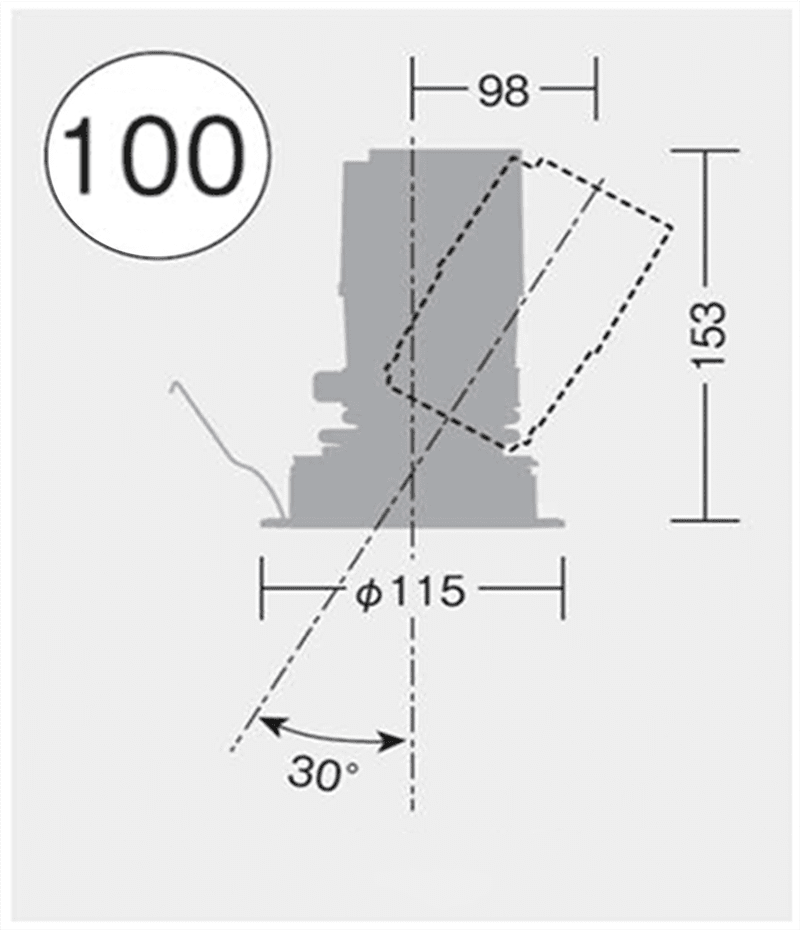

Dimension	D.115/H.153mm
Weight	1.0 Kg
Light source	LED
Wattage	23.6W

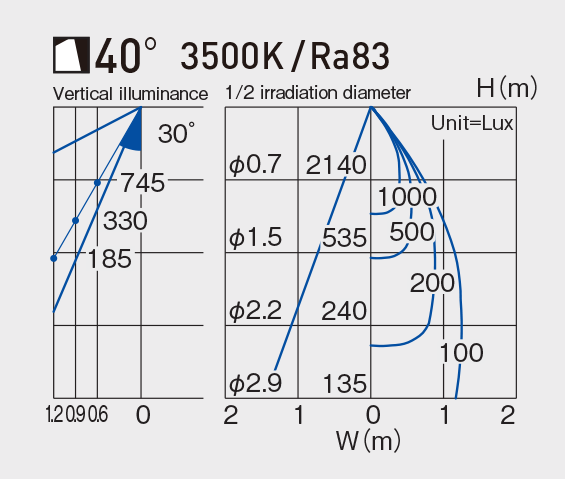

Lumen, Color temp.	1330Lm(3500K)/1240Lm(2700K)/1290Lm(3000K)
Beam angle	40°
CRI	83
Protection Class(IP)	IP44

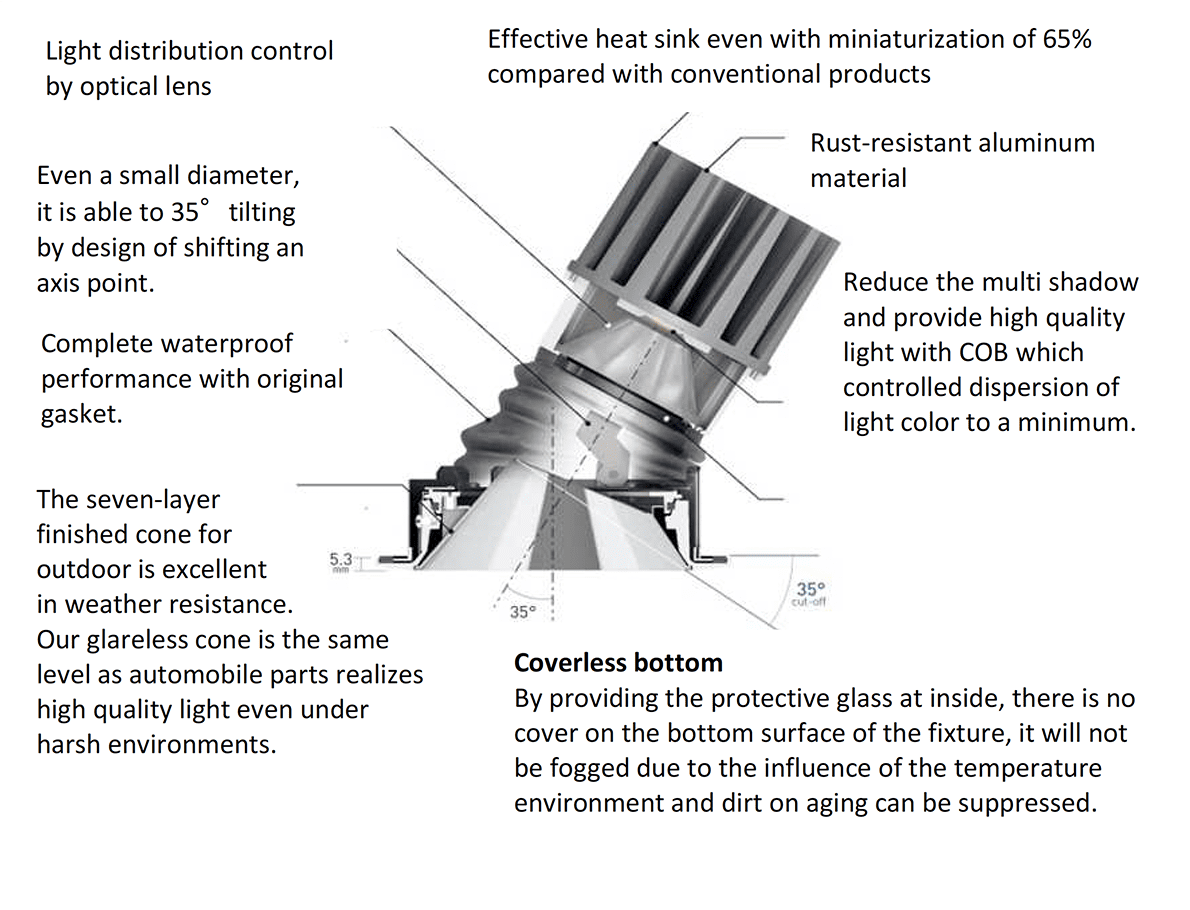

Component & Information

Aluminum die-casting trim, marine-grade painting with stainless color
Aluminum die-casting heatsink, Stainless steel fixture
Silicon accordion black gasket, Plastic cone chrome plating
Optical control lens, Tempered glass cover, clear

*Glare cut-off angle: 35°
*Ceiling cut-out hole: Dia.100mm
*Available ceiling board: t5~25mm
*Remote LED driver is required.
