Specification Sheet

Luminaire Type :

Adjustable Downlight
Model Code :

LLD-7141AUB

3500K

LLD-7141LUB

2700K

LLD-7141YUB

3500K

Technical Data

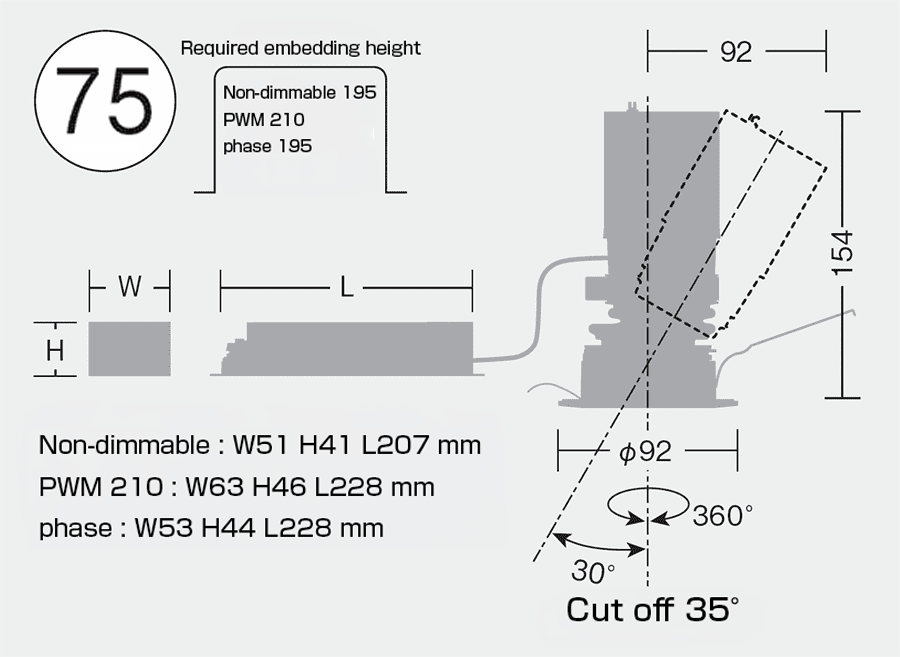

Dimension	D.92/H.154mm
Weight	0.8 Kg
Light source	LED
Wattage	23.6W
Lumen, Color temp.	415Lm(3500K)/385Lm(2700K)/400Lm(3000K)

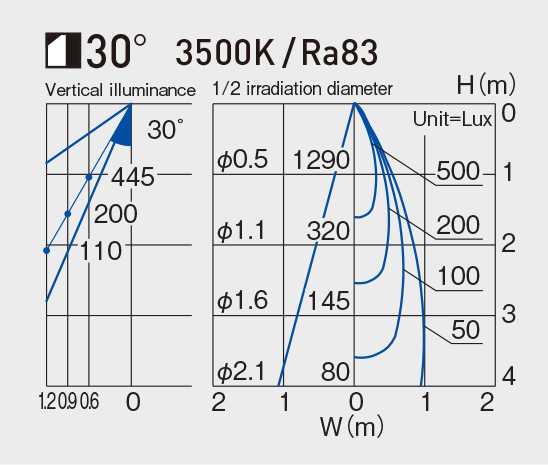

Beam angle	30°
CRI	83
Protection Class(IP)	IP44

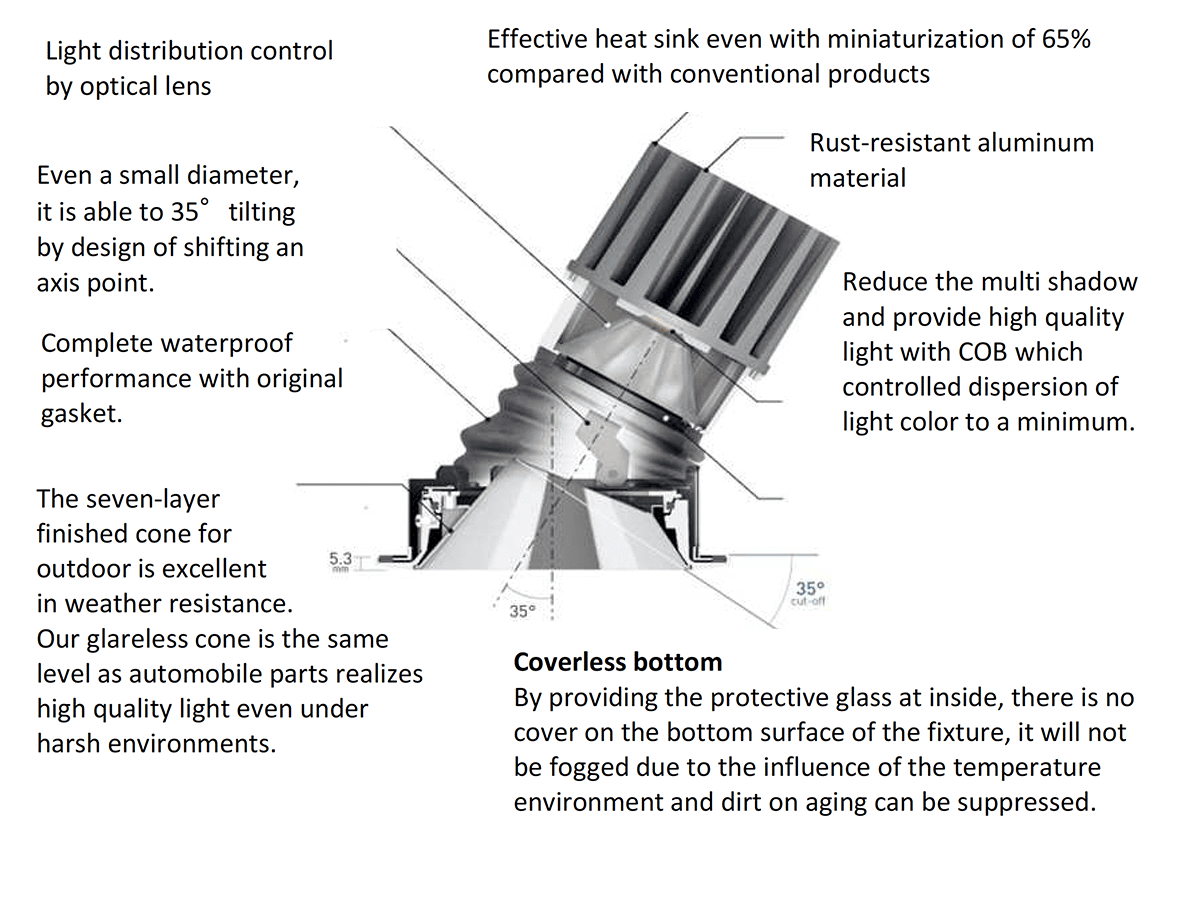

Component & Information

Aluminum die-casting trim, marine-grade painting with stainless color
Aluminum die-casting heatsink, Stainless steel fixture
Silicon accordion black gasket, Plastic cone chrome plating
Optical control lens, Tempered glass cover, clear

*Glare cut-off angle: 35°
*Ceiling cut-out hole: Dia.75mm
*Available ceiling board: t5~25mm
*Remote LED driver is required.
