Specification Sheet

Luminaire Type :

Adjustable Downlight
Model Code :

LLD-7060AUM

3500K

LLD-7060LUM

2700K

LLD-7060YUM

3000K

Technical Data

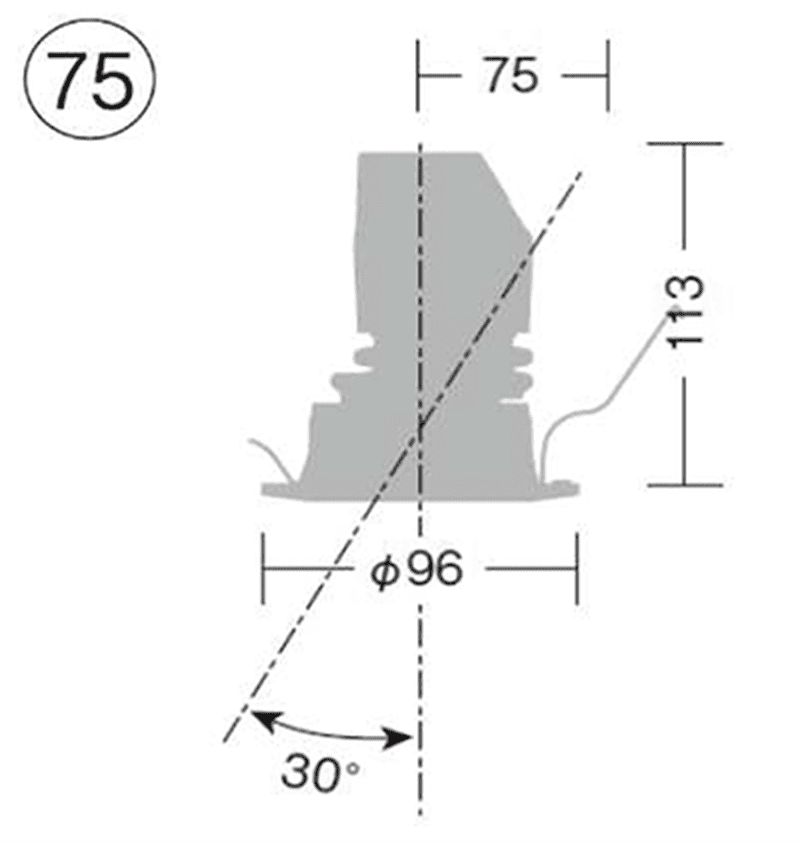

Dimension	D.96/H.113mm
Weight	0.7 Kg
Light source	LED
Wattage	13.7W
Lumen, Color temp.	495Lm(3500K)/465Lm(2700K)/485Lm(3000K)

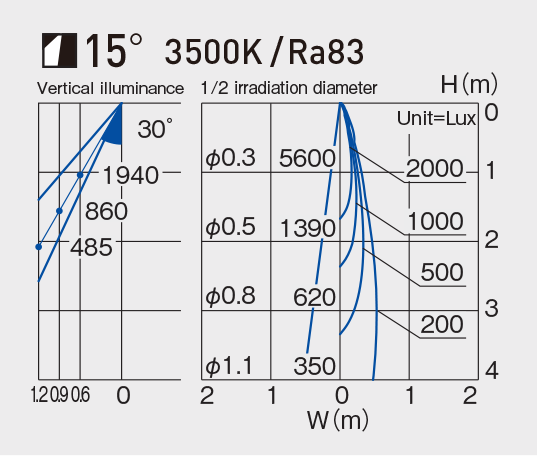

Beam angle	15°
CRI	83
Protection Class(IP)	IP44

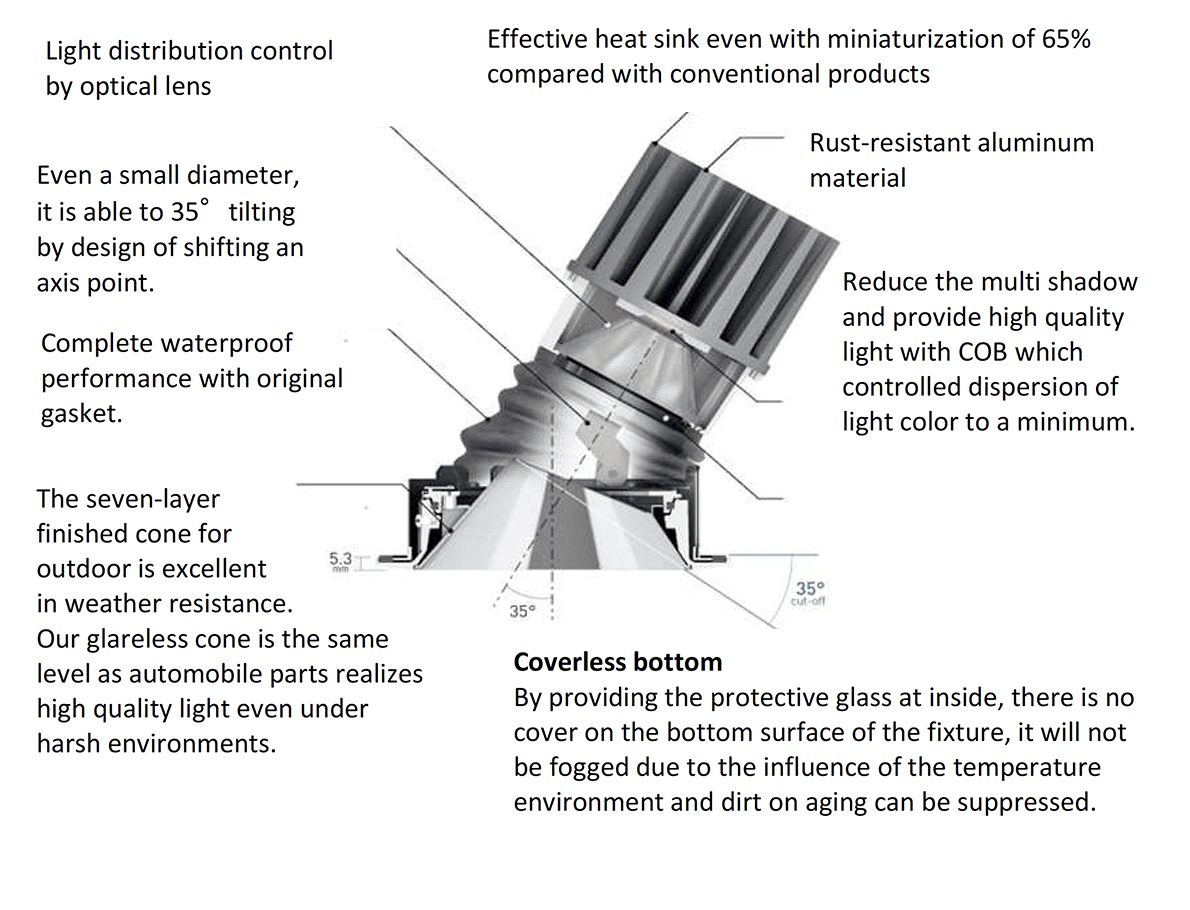

Component & Information

Aluminum die-casting trim, marine-grade painting with stainless color
Aluminum die-casting heatsink, Stainless steel fixture
Silicon accordion black gasket, Plastic cone chrome plating
Optical control lens, Tempered glass cover, clear

*Glare cut-off angle: 35°
*Ceiling cut-out hole: Dia.75mm
*Available ceiling board: t5~25mm
*Remote LED driver is required.
